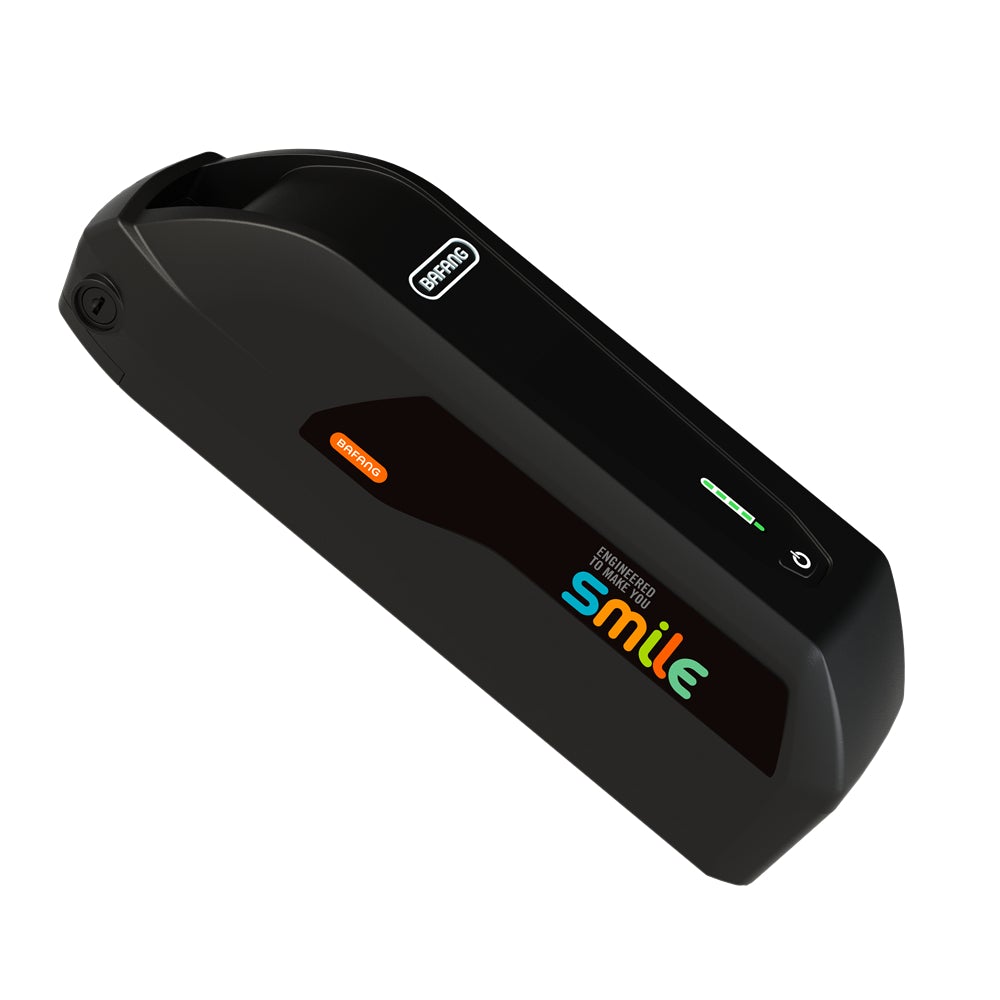

Note: The BT F23.720.C battery is only compatible with the M225/M325/M625 drive systems with CAN protocol. Bafang M225/M325/M625 drive systems can only be used on vehicles intended for off-road use and designed to travel on unpaved surfaces. Please make sure to comply with local laws and regulations.
This conversion kit contains the following components:
|Base Parameter||BT F23.720.C|
|Nominal Voltage||50.4 DCV|
|Min Capacity||14.1Ah(@1C/25℃ Discharge)|
|Continuous Charge Current||4 A|
|Charging time||4.5h with 4A Charger|
|Storage( At 35% SOC &-10～35℃)||6 Months (need to charge)|
|Cycle Life||600 (70%SOC(@25±5°C, Charge @0.2C and email@example.comC))|
|Riding Distance||ca. 40km( 500W motor)|
|Weight||Appr. 4.2 KG|
|Charger||Special 5P charger|
100 –240 ACV, 50/60 Hz
Rated output voltage:
4 A ± 0.2 A
Minimum battery charge voltage:
28 ± 2 1 V
NTC < 0 ± 3 °C or NTC > 65 ± 3 °C
Meet local standard
FCC, UL62368, RoHs
Errors – Causes and Solutions:
The operating display does not light up.
The mains plug not properly
Check all connections and whether the charger is properly connected to the power supply.
The charging indicator is not lighting up.
The battery may have a
Contact the manufacturer or your
The charging indicator is not lighting up permanent red.
The battery may have a
Contact the manufacturer or your
Battery notes：a, It is recommended to charge the battery after use. But never fully discharge the battery.
b, When the battery is not used for storage, the recommended capacity of the battery should be between 60%-80%
c, Do not charge the battery longer than the charging time specified
d, Read the indications printed on the external label of the battery before using the battery.
Thank you for using BAFANG products.When using or modifying prrameters, please make sure to comply with the local laws and regulations.
This warranty is offered only for the initial buyer or the designated brand in Europe, North America, Japan, Hong Kong, Macao and mainland China. Customers in other regions should contact their BAFANG representatives for information or contact firstname.lastname@example.org
LIMITED ONE-YEAR WARRANTY AND POLICY ON REPLACEMENT PROCEDURES & RESPONSIBILITIES
Under compliance with local law and reasonable use, the warranty period ends 12 months after the date of sales. Free repair by seller and the buyer undertake the return shipping cost.
The warranty may not be transferred to a third party other than as specified in the agreement with BAFANG&EUNORAU.
Other situations may be covered, depending on the agreement between BAFANG&EUNORAU and the buyer.
WARRANTY PERIOD AND TARGET AUDIENCE TERMS
The warranty would be registered automatically when the initial purchaser ordered it in the online shop. So the warranty is under the INITIAL PURCHASER and the one-year warranty would be started since the initial owner has received it.
As for the warranty transfer, the ebike transfer can only enjoy the warranty when the following two conditions are met at the same time:
The one-year package hasn't expired since the initial owner has received it.
You have the initial owner's name & the initial order number.
EUNORAU will replace any component that is deemed to be defective or damaged (including damage incurred during shipment) without user error. The warranty covers the listed products and follows the terms below:
EUNORAU ebike frames are covered by a replacement warranty for one year.
This warranty includes a replacement frame only. Labor charges to changeover parts to replacement frames are not included. Changeover labor must be performed by an authorized EUNORAU.
EUNORAU reserves the right to use scratch and dent stock when replacing a frame under this warranty. Frame styles and/or colors not in stock may be replaced with a compatible style and/or color at the discretion of EUNORAU.
Frame issues that are excluded from this warranty include but are not limited to:
Paint fade, scratches, impact marks
Non-reversible modification (drilling/welding)
Chain guard mount to the frame if applicable
EUNORAU batteries are covered by a one-year prorated warranty.
During one year of service – A defective battery will be repaired or replaced at no cost to the customer. The warranty period for a repaired or replaced battery remains unchanged based on the original purchase date.
After the first year of service – A prorated credit, based on months of service, will be applied toward the purchase of a new battery. Batteries purchased at pro-rated cost will have a new one-year warranty based on the pro-rated purchase date.
No cash reimbursement will be made.
Batteries can be assessed and found defective directly by EUNORAU only.
This Limited Warranty does not cover:
Ordinary wear and tear not the result of defects in workmanship or materials. Wear and tear can be assessed by EUNORAU. Parts not typically covered include but are not limited to:
Parts compromised due to corrosion due to the elements (moisture, heat, etc).
Damage or deterioration of the surface finish, appearance, or aesthetics of the product.
frame, forks, handlebar, seat post, saddle, brakes, lights, crankset, pedals, rims, wheel hub, freewheel, cassette, derailleur, shifter, motor, throttle, controller, wiring harness, LCD display, kickstand, reflectors, and hardware. Warranty within one week after receiving the goods. Parts damaged during use after seven days need to be charged.
Labor charges for part replacement or changeover.
Defects or damage resulting from accident, abuse, misuse, abnormal use (including but not limited to stunt riding, racing, or other similar activities not consistent with the intended use of the Products), improper storage, abnormal exposure to liquid, chemicals, moisture, abrasives, sand or dirt, neglect, or abnormal physical, electrical or electromechanical stress.
Scratches, dents, and cosmetic damage not caused by EUNORAU.
The product that has the serial number or the bar code removed, defaced, damaged, altered, or made illegible.
Defects or damage to the Products caused by the use of accessories, products, or ancillary/peripheral equipment not furnished or approved by EUNORAU with the Products.
Defects or damage caused by improper assembly, testing, operation, maintenance, installation, service, repair, or adjustment in a manner that varies from Assembly Instructions & Owners Manual.
Defects or damage resulting from external causes, such as collision, fire, flooding, windstorm, lightning, earthquake, exposure to weather conditions, theft, blown fuse, or improper use of any electrical source.
In addition, with respect to the battery, this Limited Warranty does not cover defects or damage:
Caused by charging by a battery charger not intended or appropriate for use with the Battery or the improper use of a battery charger;
Where any of the seals on the battery are broken or show evidence of tampering;
Where the Battery has been used in equipment other than the Bike for which it is specified;
Parts & Components
Original EUNORAU parts & components are covered by a one-year limited warranty (When all the spare parts for the warranty are sent to the customer, the customer needs to bear the freight).
All claims to this warranty must be made through EUNORAU. and submitted to email@example.com. Proofs of purchase and photos or videos of the damaged product are required with any warranty request. Before making a warranty claim, we suggest that you contact us at firstname.lastname@example.org as there may be a simple fix for your problem. Valid warranty claims will be processed through EUNORAU within one year of initial purchase.
EUNORAU will not replace any part without first seeing photos or video of the damaged product. Customers need to provide us with evidence by email.
Shipping Damage Claims
In rare instances, the item received may be damaged during transportation. If shipping damage occurs, please contact email@example.com and provide us with photo or video proof.
All free accessories will not participate in the replacement or compensation if they cause scratches during transportation.
NOTICE: we will not accept Shipping Damage Claims later than 7 days from receipt of products.
For offline bicycle store repair services, EUNORAU will only provide free replacement parts. We do not reimburse any labor costs produced in the repair service.
We are proud and privileged many bicycle buyers around the world use BAFANG series of products.
BAFANG has created the following warranty, -based on the BESST system – which makes it possible to track and address service issues for BAFANG products.
Warranty period for products:
Under compliance with local law and reasonable use, if no valid invoice can be provided, the warranty period ends 6 months after the date of manufacturing (as indicated by the serial number); if valid invoice can be provided, the warranty period ends 6 months after the date of invoice, however,the longest warranty period is limited to a maximum of 9 months from manufacturing date.
The warranty may not be transferred to a third party other than as specified in the agreement with BAFANG.
Other situations may be covered, depending on the agreement between BAFANG and the buyer.
1、 BAFANG products that have been modified or repaired without authorization
2、 BAFANG products that have been used for rental, commercial applications, or competition
3、 Damage resulting from causes other than defects in material or manufacture, including but not limited to an accident, neglect, improper assembly, improper repair, improper maintenance alteration, modification, abnormal excessive wear or improper use
4、 Damage during shipping: The party’s responsible for the damage must be determined using INCOTERMS regulations.
5、 Damage to the surface finish, aesthetics, or appearance
6、 Damage due to buyer’s improper transportation or storage
7、 Failure due to an unreasonable user configuration or unauthorized changes in the relevant accessories parameters
8、 Damage or loss due to force majeure
9、 Damage or failure to components not manufactured by BAFANG, even if sourced through BAFANG at buyer’s request
Please contact the Service Center （firstname.lastname@example.org）for more information or to request repair.
We accept order cancellation before the product is shipped or produced. If the order is canceled you will get the full refund. We cannot cancel the order if the product is already shipped out.For rejection, we have to refund you after deducting the shipping cost.
Returns (if applicable)
We accept a return on products. Customers have the right to apply for return within 7 days after the receipt. To be eligible for a return,customers must receive the product in 100% new, Re-sellable condition. Merchandise is not eligible for a refund if it has been assembled, ridden, worn, used, abused, damaged in any way. The merchandise must arrive complete, including warranty cards, manuals, accessories,promotional material, and in the original packaging.Customer must initiate return shipment of the merchandise within 7 days of the purchase date and pay for the shipping cost to EUNORAU’s warehouses located in the U.S. We will finish the inspection within 5 days after receipt of the product. If the returned products are not in original condition according to Clause, We will refuse a refund.If the returned products are in original condition according to Clause, We will agree to refund the paid amount.
Refunds (if applicable)
Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund. If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.
Late or missing refunds (if applicable)
If you haven’t received a refund yet, first check your bank account again.
Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted. If you’ve done all of this and you still have not received your refund yet, please contact us at email@example.com
Please contact our Customer service at firstname.lastname@example.org to get the returned address.
